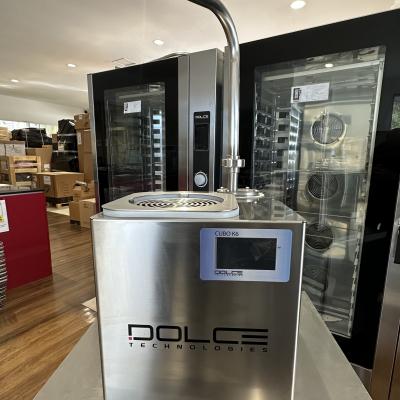

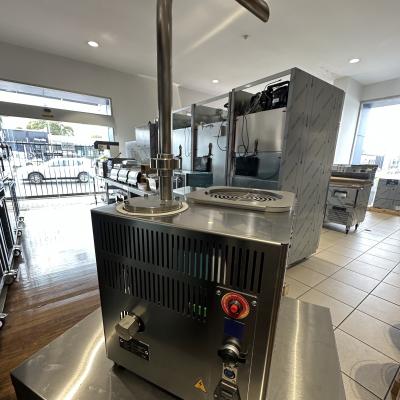

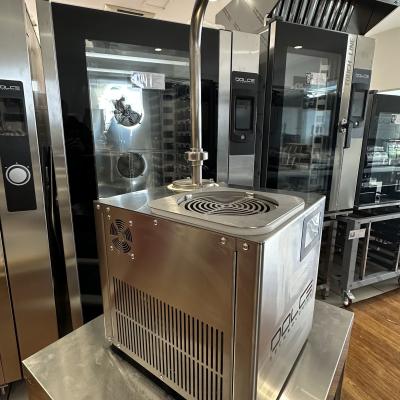

Cubo K6

The Cubo k6 is an ideal counter-top unit for any gelato shop or bar that's seeking the aesthetic effect and the distinctive fragrance of a chocolate fountain, combined with the practicality and convenience of a high quality model. Customers are becoming increasingly aware of the stylistic choices of the locales they frequent, and tend to evaluate them based on perceived innovations and novelties. The Aya k6 chocolate fountain has been introduced as a novelty into numerous Italian gelato shops, bars and restaurants, all of which have been extremely happy with the results. This model is extremely safe and durable, thanks also to its stainless-steel body. It features two interior motors for controlling the mixer and the auger, and comes with all the components necessary to allow it to function effortlessly and in continuation, even for extended periods of time. The Cubo k6 unit's night mode can be activated with the simple press of a button. When pressed, the machine reverses the auger motor's director of rotation in order to draw all the chocolate back into the basin, thereby also facilitating the motor's reactivation the following morning. The type and color of the chocolate can be changed thanks to the removable stainless-steel auger.

Dimensions:
L46cm W36cm H80.5cm
Basin diameter 20cm
Outlet pipe length 38.5cm

Machine weight: 40kg Basin capacity 6kg

Body material: Stainless steel
Consumption 1 kW
230 V 50/60 Hz
Operating times Time for melting the chocolate and creating the chocolate fountain effect:
– 1 hour starting with solid chocolate chips.
– A few seconds, if the machine was in stand-by mode
Instrumentation and electrical system 4.3 inch touch screen display with built-in multi-function program: 2 operating modes:
Manual & Standby
Electronic dosing
Temperature management
Remote control and remote support functions
Program open to future updates
Safety fuses on the main components
1 Resettable auger motor fuse
1 Inverter for direction reversal
1 Pedal to stop the flow of chocolate
1 Magnetic basin protection sensor
Handling system Two single-phase motors
Two reducers
Removable stainless steel auger
Heating system One silicone heating element for heating the basin
One heating cable for heating the auger
Optionals The Aya 4.0 Package includes – USB Wi-Fi adaptor for connection from a mobile device; Tablet with instruction manual and instructional video; Remote support service
Temperature control system Two PT 100 probes – 1) Basin; 2) Auger;
